A hydraulic oil may pass routine viscosity, flash point, and appearance checks yet still perform poorly in service. For manufacturers, equipment operators, distributors, and lubricant formulators, the real question is often not simply whether an oil meets a basic specification, but whether its base oil, additive system, contamination level, and in-service condition are consistent with the expected product and operating requirements.
A professional hydraulic oil analysis lab can help answer those questions through physical testing, elemental analysis, spectroscopy, contamination assessment, and comparative chemical analysis.
Xinbodi supports hydraulic oil quality control, failure investigation, supplier comparison, and lubricant formulation projects. When routine oil testing cannot explain a batch difference or equipment problem, our chemical composition analysis capabilities can be used to investigate deeper differences in the oil.
What Does a Hydraulic Oil Analysis Lab Test?
Hydraulic oil analysis generally focuses on four areas: oil condition, contamination, equipment wear, and formulation consistency.
| Analysis Area | What It Helps Evaluate | Typical Parameters or Methods |
|---|---|---|
| Oil condition | Whether the oil has degraded during storage or service | Viscosity, acid number, oxidation, sludge |
| Contamination | Whether water, particles, dust, or foreign fluids have entered the system | Water content, particle cleanliness, chemical screening |
| Wear condition | Whether abnormal equipment wear may be occurring | Fe, Cu, Al, Cr and other wear-related elements |
| Formulation & additives | Whether different batches or suppliers use equivalent chemistry | FTIR, ICP-OES, GC-MS, additive-marker comparison |
The appropriate test package depends on the business question.
A new oil batch submitted for incoming inspection does not require the same analytical strategy as an in-service oil from a hydraulic system experiencing overheating or abnormal pump wear.
Why Companies Use Hydraulic Oil Analysis
The commercial value of hydraulic oil analysis usually falls into three categories: incoming quality control, failure investigation, and formulation development.

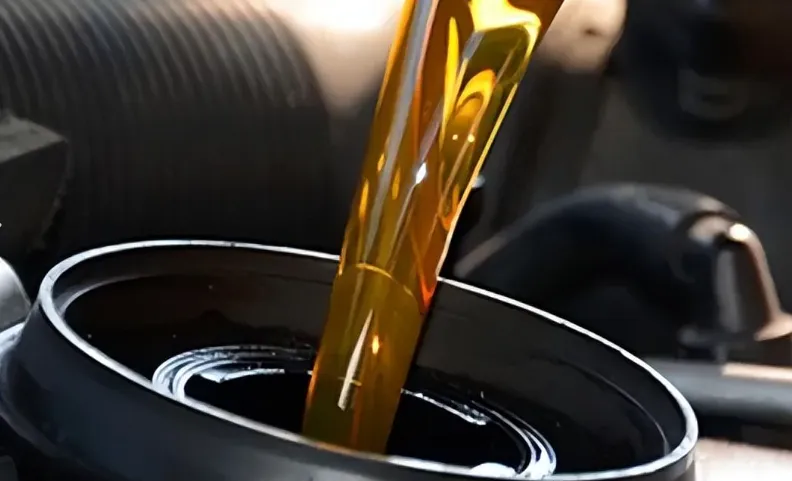

Incoming Hydraulic Oil Quality Control
For equipment manufacturers, industrial plants, distributors, and lubricant buyers, incoming quality control is often the most direct application.
Verify Incoming Hydraulic Oil
Routine acceptance tests can confirm properties such as viscosity or flash point, but they may not reveal changes in the base oil or additive system.
Comparative analysis can help determine whether an incoming batch remains chemically consistent with an approved reference product.
This is especially useful when a company needs to investigate suspected:
base-oil changes, reduced anti-wear additive levels, batch-to-batch inconsistency, or substitution with a lower-cost formulation.
Rather than relying only on the supplier’s product name or certificate, companies can establish an internal chemical baseline for approved hydraulic oils.
Compare Different Suppliers and Batches
Hydraulic oil supplied under the same grade may still show meaningful differences between suppliers or production batches.
A laboratory comparison can evaluate whether changes exist in:
| Comparison | Business Question |
|---|---|
| Approved oil vs new batch | Has the formulation changed? |
| Supplier A vs Supplier B | Are the oils chemically comparable? |
| Previous batch vs current batch | What caused a change in performance? |
| Qualified reference vs suspect oil | Is the abnormal oil different from the approved material? |
This type of comparison can support purchasing decisions and supplier quality management.
Investigate Product Grade and Formulation Consistency
Where sufficient reference information is available, advanced analysis may also help determine whether the composition profile is consistent with the declared lubricant type or approved formulation.
This is more reliable when a suspect sample can be compared directly with a retained qualified reference rather than evaluated in isolation.
Hydraulic Oil Failure Investigation

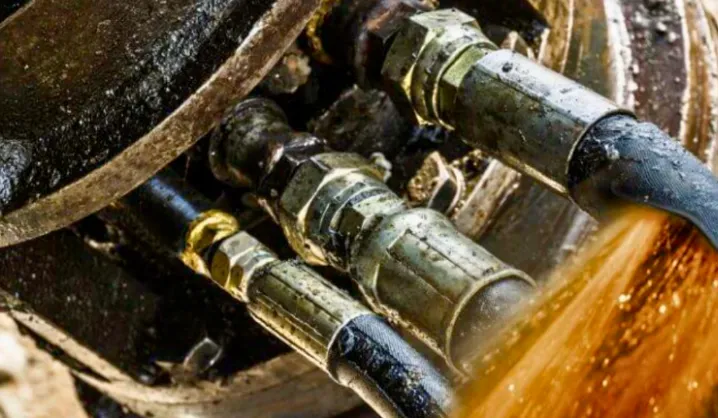

Hydraulic oil analysis is also widely used after equipment problems begin.
Typical warning signs include abnormal pump noise, increasing oil temperature, accelerated wear, premature seal leakage, sludge formation, or unexpectedly short oil life.
The challenge is determining whether the problem comes from the lubricant, the equipment, the operating environment, or several factors acting together.
Trace Lubricant-Related Failure Causes
A failure analysis investigation may combine oil condition data with chemical composition and equipment information to evaluate possible causes such as oil oxidation, additive depletion, contamination, incorrect lubricant selection, or abnormal operating conditions.
For example, elevated wear metals alone do not prove that the hydraulic oil is defective.
The result must be interpreted together with oil condition, equipment metallurgy, filtration, operating temperature, contamination history, and comparison with new oil.
Support Responsibility Assessment
Hydraulic system failures sometimes involve disputes between equipment suppliers, lubricant suppliers, operators, and maintenance teams.
Laboratory evidence can help distinguish whether the available data are more consistent with:
an oil quality problem, contamination during service, abnormal operating conditions, equipment-related wear, or maintenance and handling issues.
The purpose is not to assign responsibility from one test result, but to build an evidence-based technical picture.
Evaluate In-Service Hydraulic Oil
Periodic analysis of used hydraulic oil can also help companies understand how the lubricant changes during operation.
Important indicators may include viscosity, oxidation, acid number, water, contamination, wear-related elements, and additive-related markers.
Elemental analysis of lubricating oils is covered by methods such as ASTM D5185, which can be used to determine selected additive, wear, and contaminant elements in new and used lubricating oils.
When particle cleanliness is part of the project, results may be reported using the ISO 4406 cleanliness coding system.
The appropriate replacement interval should still be determined from equipment requirements, operating history, and actual oil condition rather than from a universal laboratory threshold.
Hydraulic Oil Formulation Analysis and Product Development
Hydraulic oil analysis is not limited to maintenance.
Lubricant manufacturers and blending companies also use analytical testing for product development, benchmarking, and formulation optimization.
Competitor and Benchmark Formulation Analysis
A benchmark hydraulic oil can be studied to understand its base-oil characteristics and additive system.
Depending on the project, deformulation services may combine spectroscopy, chromatography, thermal analysis, and elemental analysis to investigate functional components and approximate composition ranges.
This can support:
product benchmarking, localization projects, formulation development, and supplier substitution.
Formulation Cost Optimization
The objective is not simply to reduce additive concentration.
A formulation optimization project should maintain the required anti-wear, oxidation, rust protection, viscosity-temperature, and other relevant properties while evaluating whether the base-oil system or additive package can be adjusted more efficiently.
Laboratory comparison with a proven benchmark can help identify which differences are technically important and which may offer room for formulation optimization.
Develop Hydraulic Oils for Specific Operating Conditions
Different hydraulic systems place different demands on the lubricant.
High temperature, high pressure, heavy load, and low-temperature operation may require different formulation priorities.
Analytical benchmarking can therefore support targeted improvements in anti-wear protection, oxidation resistance, rust prevention, and low-temperature behavior.
Key Hydraulic Oil Testing Methods
Viscosity and Physical Properties
Kinematic viscosity is one of the most fundamental hydraulic oil parameters.
A significant change may indicate degradation, contamination, incorrect oil addition, or formulation differences.
Viscosity index, flash point, acid number, and water content may provide additional information depending on the project.
However, acceptable routine properties do not necessarily prove that two oils have equivalent chemistry.
FTIR for Oil Condition and Formulation Comparison
FTIR spectroscopy is useful for comparing organic chemical characteristics between oil samples.
It can support investigation of:
oxidation-related changes, additive-related differences, contamination, and formulation consistency.
For supplier or batch investigations, overlaying spectra from the approved and suspect oils can quickly show whether obvious chemical differences exist.
ICP-OES for Wear Metals and Additive Markers
ICP-OES is particularly useful because it can provide information on both equipment wear and lubricant formulation.
Depending on the oil and equipment, relevant elements may include Fe, Cu, Al, Cr, Zn, P, Ca, and Mg.
Interpretation is critical.
For example, zinc and phosphorus may be associated with zinc-containing anti-wear chemistry, but elemental analysis alone does not directly quantify the concentration of a specific ZDDP molecule.
GC-MS and Advanced Organic Analysis
Where deeper formulation analysis is required, GC-MS and other chromatographic techniques can help investigate organic additives, contamination, or differences between benchmark and unknown samples.
These methods are especially useful in supplier comparison and formulation development projects where routine oil condition tests do not provide enough information.
Case Study 1: Incoming ISO VG 46 Hydraulic Oil Showed Formulation Downgrading
A heavy-equipment distributor purchased a batch of ISO VG 46 hydraulic oil.
Routine incoming inspection, including viscosity and flash point, met the company’s acceptance requirements. However, the distributor wanted to verify that the supplier had not reduced formulation quality to lower production cost.
A qualified reference and the incoming batch were submitted for comparative analysis.
FTIR, ICP elemental analysis, and hydrocarbon-distribution evaluation identified clear differences between the two samples.
The incoming oil showed a base-oil profile interpreted as more consistent with a solvent-refined Group I-type formulation, while the approved reference had been specified as a Group II hydrotreated oil.
More importantly, Zn/P anti-wear additive markers in the incoming batch were only about 40% of the qualified reference level.
The overall additive profile was also substantially reduced.
Four-ball testing provided additional performance evidence: the maximum non-seizure load of the incoming oil was only about 65% of the qualified product.
The combined results indicated that the batch was not equivalent to the approved reference in either base-oil characteristics or functional additive level.
The distributor used the analytical findings to reject the batch before it entered the after-sales supply chain.
This case demonstrates why incoming hydraulic oil quality control may require more than viscosity and flash point testing.
Case Study 2: Used-Oil Analysis Traced Hydraulic System Problems to Dust Contamination
A loader operating in a mining environment developed shifting difficulties, increased friction, and elevated oil temperature after approximately three months of service.
The equipment team initially suspected a component quality problem.
To investigate the cause, samples of the in-service hydraulic oil and new reference oil were submitted for comparative analysis.
The used oil showed a major reduction in anti-wear additive-related indicators, with the remaining level measured at less than 30% of the new-oil reference.
Iron content was also substantially elevated, while acid number and sludge levels were markedly higher than the comparison baseline.
When these laboratory findings were evaluated together with the operating environment, the evidence supported a different explanation from the original equipment-defect hypothesis.
Dust ingress in the mining environment had contaminated the hydraulic oil. The particulate contamination contributed to abrasive wear, while continued contamination and severe service conditions accelerated additive consumption and oil oxidation.
The company subsequently improved filtration control and strengthened dust protection at the breather system.
Following these changes, the customer reported that hydraulic pump failure incidence decreased by more than 70%.
The key value of the oil analysis was not simply detecting iron or depleted additives. It was connecting the laboratory evidence with the actual operating environment to identify the most likely failure mechanism.
Case Study 3: ISO VG 46 Hydraulic Oil Benchmarking for Formulation Development
A lubricant manufacturer planned to develop a higher-performance ISO VG 46 anti-wear hydraulic oil based on an imported benchmark product.
The company needed more than a conventional performance comparison. It wanted to understand how the reference product was formulated.
A multi-technique chemical analysis program was therefore used to investigate the benchmark oil.
Chromatographic, spectroscopic, and elemental analyses indicated that the reference formulation used a Group II hydrotreated base-oil system together with a multi-component additive package.
The additive system included functional chemistry associated with anti-wear protection, oxidation control, rust prevention, and foam control.
The analysis also helped define practical composition ranges and relationships between the functional components.
The manufacturer used the analytical findings to adjust its own base-oil selection and additive system.
According to the project outcome provided by the customer, the optimized product approached the imported benchmark in anti-wear performance, viscosity-temperature performance, and oxidation stability, while raw-material cost was approximately 35% lower than directly sourcing the imported oil.
This type of project shows how hydraulic oil analysis can support not only troubleshooting but also R&D and formulation localization.
New Oil Analysis vs Used Hydraulic Oil Analysis
The analytical strategy changes depending on whether the sample is fresh or in service.
New hydraulic oil analysis is mainly used for incoming quality control, supplier verification, batch comparison, benchmark analysis, and establishing a reference baseline.
Used hydraulic oil analysis focuses more on degradation, contamination, wear, additive change, and determining whether the lubricant remains suitable for continued operation.
For either type of project, a qualified reference sample greatly improves interpretation.
A laboratory can usually say much more when it can answer “what changed?” rather than only “what is in this sample?”
What Samples Should You Send to a Hydraulic Oil Analysis Lab?
For supplier or quality-control investigations, the most useful submission is usually the suspect oil together with a qualified reference from a previously accepted batch.
For equipment-failure investigations, provide the used oil together with fresh oil of the same product whenever possible.
Information such as oil grade, supplier, batch number, equipment type, operating time, abnormal symptoms, temperature history, filtration conditions, recent maintenance, and suspected contamination can significantly improve interpretation.
For formulation development, the benchmark product and the specific performance targets should be clearly defined before the analytical program is selected.
What You Should Expect from a Hydraulic Oil Analysis Report
A useful hydraulic oil report should do more than provide instrument data.
The report should distinguish between:
measured results, identified chemical differences, and technical interpretation.
For example, an ICP result may directly show lower zinc and phosphorus levels. That is a measurement.
The conclusion that the anti-wear additive system differs from the qualified reference is an interpretation supported by those measurements and other analytical evidence.
Keeping these two levels separate makes the report more useful for procurement decisions, supplier discussions, failure investigations, and formulation development.
Why Choose Xinbodi as Your Hydraulic Oil Analysis Lab?
Xinbodi supports hydraulic oil projects across three practical business scenarios: quality control, failure investigation, and formulation development.
Our work is especially useful when routine inspection does not fully answer the customer’s question.
For incoming oil, we can compare suspect and approved batches to investigate base-oil and additive differences.
For equipment problems, we can combine oil condition, elemental, contamination, and chemical analysis with failure analysis to investigate whether lubricant condition is consistent with the observed failure.
For lubricant manufacturers, our deformulation and composition analysis capabilities can support benchmark studies, formulation development, and product optimization.
For companies requiring broader lubricant evaluation beyond hydraulic fluids, Xinbodi also provides lubricant and grease analysis services for industrial oils, greases, additives, formulation comparison, quality control, and failure investigation.
The goal is not simply to generate more test data.
It is to determine what changed, why it matters, and what technical action should be taken next.
If you are dealing with an inconsistent hydraulic oil batch, unexplained equipment wear, abnormal used-oil results, supplier disputes, or a formulation development project, Xinbodi can design a hydraulic oil analysis program around the specific problem rather than applying the same test package to every sample.
